Hot-Dip Galvanised Double Strut Channel
YE-21D·HDG to YE-72D·HDG
Double channel with a hot-dip galvanised finish, for heavy frames in exposed or humid locations.
- Material
- Q235B carbon steel, GB/T 700-2006
- Surface finish
- Hot-dip galvanised (HDG)
- Construction
- Mechanical splicing or welded
Prices are quoted per project. Send the quantity and the support schedule for a quotation.
Product data
Technical information
Two hot-dip galvanised channels are spliced or welded into one profile. The finish is applied to the individual sections before assembly, so the slot remains fully coated.
Used for trapeze frames and rack uprights in utility tunnels, plant rooms and outdoor pipe bridges.
- Material
- Q235B carbon steel, GB/T 700-2006
- Surface finish
- Hot-dip galvanised (HDG)
- Construction
- Mechanical splicing or welded
- Section height
- 42, 82, 104, 124 and 144 mm
- Standard length
- 6 m
Model data
| Part No. | Model | Thickness (mm) | Section height (mm) | Standard length (m) |
|---|---|---|---|---|
| 21001 | YE-21D·HDG | 2.0 | 42 | 6 |
| 21002 | YE-21D·HDG/T | 2.5 | 42 | 6 |
| 21003 | YE-41D·HDG | 2.0 | 82 | 6 |
| 21004 | YE-41D·HDG/T | 2.5 | 82 | 6 |
| 21005 | YE-52D·HDG | 2.5 | 104 | 6 |
| 21006 | YE-62D·HDG | 2.5 | 124 | 6 |
| 21007 | YE-72D·HDG | 2.75 | 144 | 6 |
Scroll the table sideways to see every column.
Applications
Where this product is used
Related products
Other products in this category

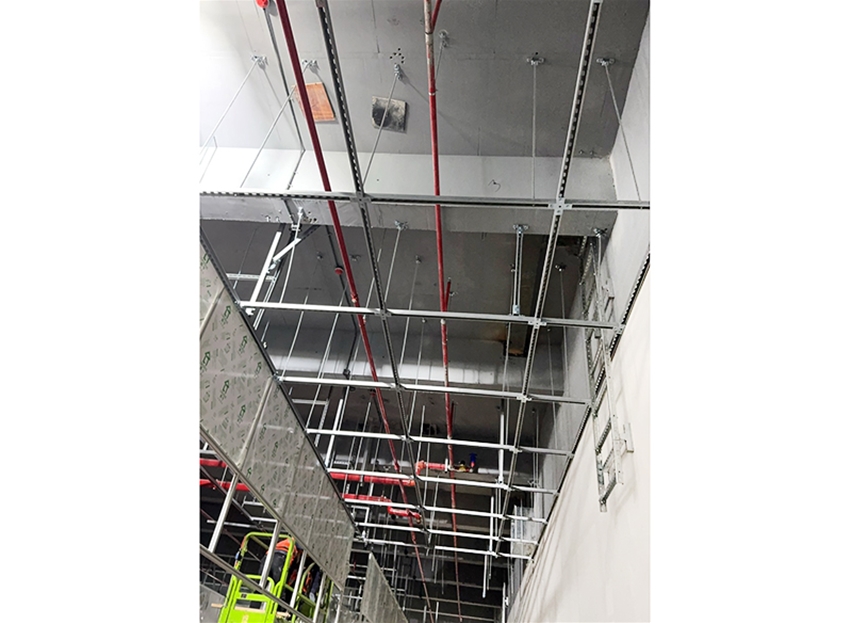

Transfer Structure Support — Configuration 413
