Prefabricated Support Systems
Channel, arms and fittings assembled into support frames. Explore the existing frame and cantilever ranges and discuss the configuration for…
QINYU / ENGINEERED SUPPORT SYSTEMS
Engineered Support Systems for Global Projects
Explore prefabricated, integrated, utility tunnel and seismic support systems. Find the product data you need and discuss your project with QINYU.
Support frames · Coordinated racks · Brace assemblies
04 SYSTEM FAMILIES
From individual components to coordinated support assemblies.
Explore manufacturing01 / OUR SYSTEMS
Four systems. One clear starting point.
Find your support system, review its products and start a project enquiry.
Integrated Support Systems
Coordinated support racks using channel, arms and connection fittings. The existing rack range brings service layouts and support points into…
Utility Tunnel Support Systems
Support racks and associated components for utility tunnel layouts, as described in the existing product catalogue. Explore the range and…
Seismic Bracing Systems
Brace assemblies, hinge connectors and seismic pipe clamps from the existing catalogue. Review the product data and discuss the requirements…
Existing catalogue photographs illustrate products and support details. Configuration and image availability vary by range.
02 / PRODUCT CATALOGUE
A closer look at the components.
Explore products from the existing catalogue, with model information and direct enquiry links.
Configured assembly

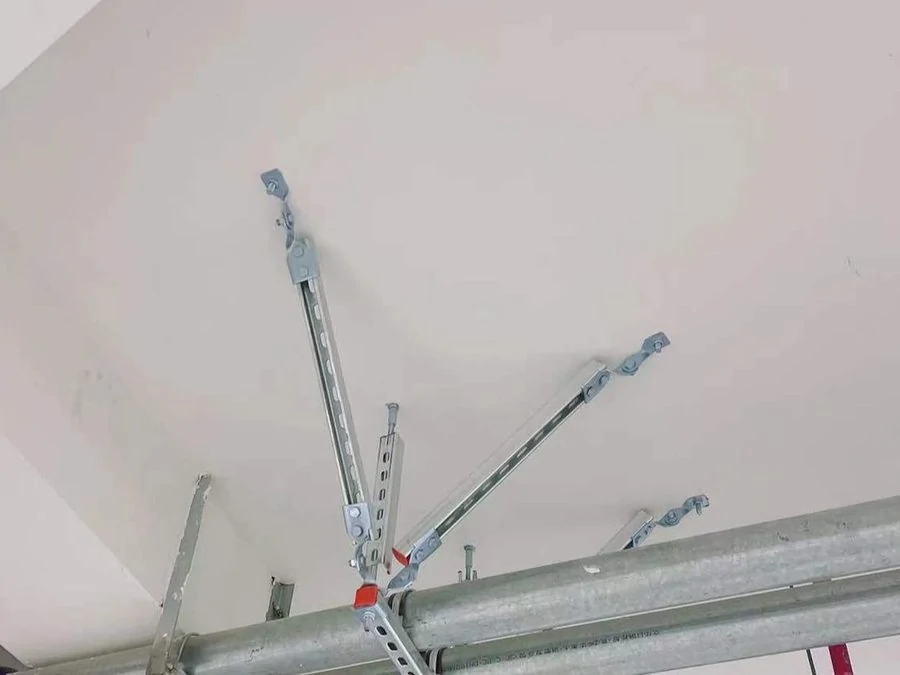

Seismic Brace Assembly for Pipes
Lateral and longitudinal sway brace for suspended pipework, made from slotted channel, a pipe clamp and hinged connectors anchored to the structure.
Rubber-lined clamp
Lined Pipe Clamp
Pipe clamp with a rubber liner between the steel shell and the pipe, for insulated pipework and noise-sensitive installations.
M10 / M12
Channel Nut with Plastic Wing
Spring-loaded channel nut that can be inserted into the channel slot from the open side and held in place before the bolt…
Pressed / welded ranges
Pressed and Welded Connection Fittings
Pressed angle and corner parts and welded gusset brackets used to build support frames and base connections.
03 / BEHIND THE PRODUCT
From components to coordinated supports
Explore support frames, brace assemblies and the channel, clamps and fittings used to connect them. The catalogue brings the existing product records into four system families.
Tell us the arrangement, quantities and destination for your enquiry. Product configuration and documentation are reviewed against your requirements.
04 / APPLICATIONS
Start with the service layout.
Explore the applications recorded in the existing catalogue. Final selection depends on the project requirements and product configuration.
HVAC and Ventilation Systems
Suspended ductwork is braced against horizontal seismic movement, and supported on channel frames that keep the duct elevations coordinated with the other…
Explore application

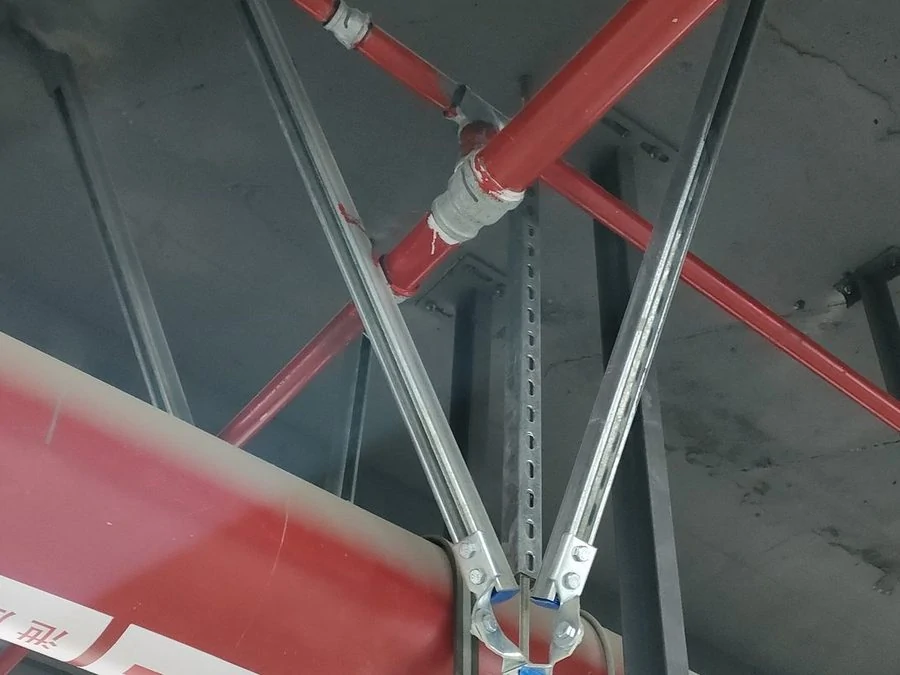

Fire Protection Piping Systems
Sprinkler and fire main pipework is braced so that a seismic event cannot pull the piping away from its supports or its…
Explore application
Water Supply and Drainage Systems
Domestic water, drainage and heating pipework carried on adjustable channel supports and braced where the code requires it.
Explore application
Let’s work through your support requirements.
Send the product list, quantities and delivery country. Include your service layout or support schedule requirements in the message.
