Catalogue reference photographs. Contact us for a confirmed image of the selected product configuration.
Utility Tunnel Support System
Made to the tunnel section

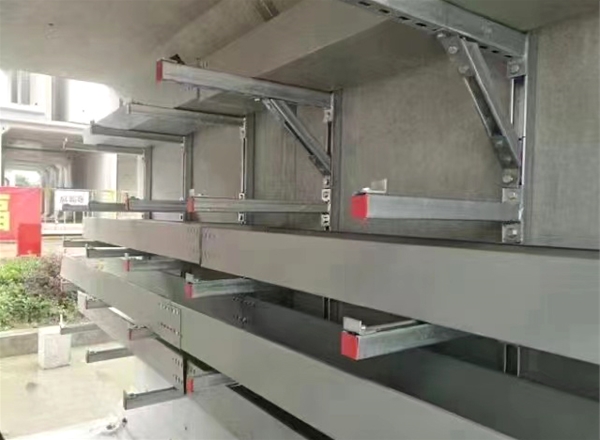

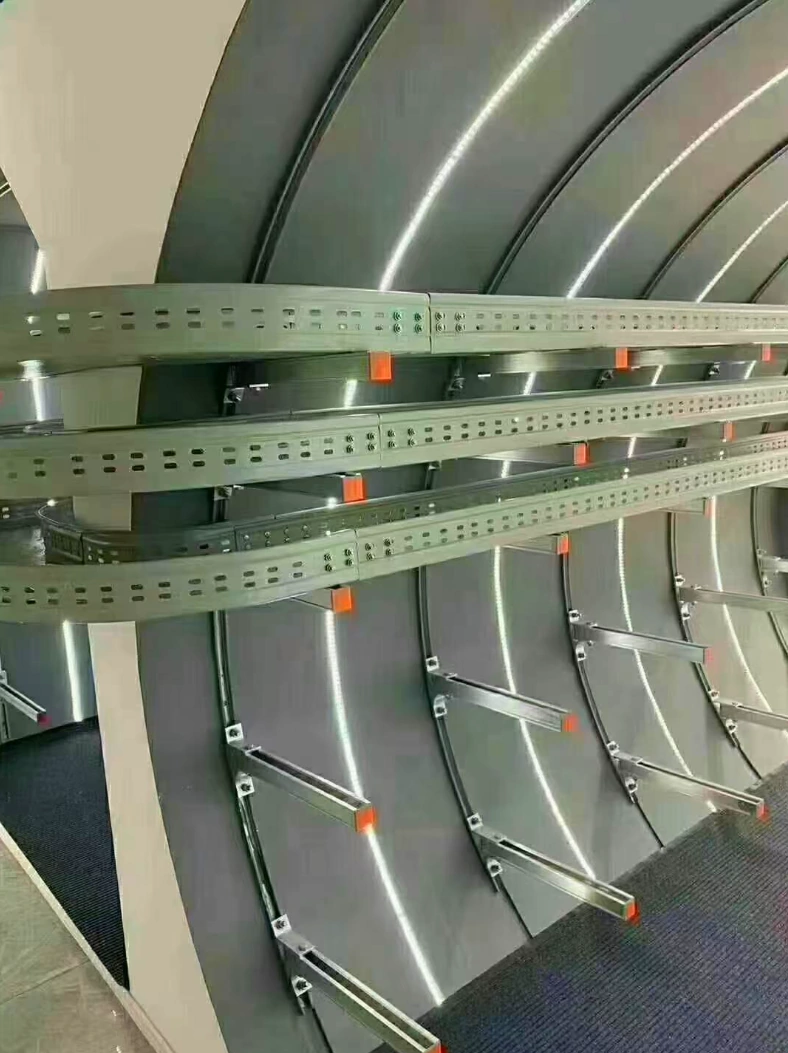

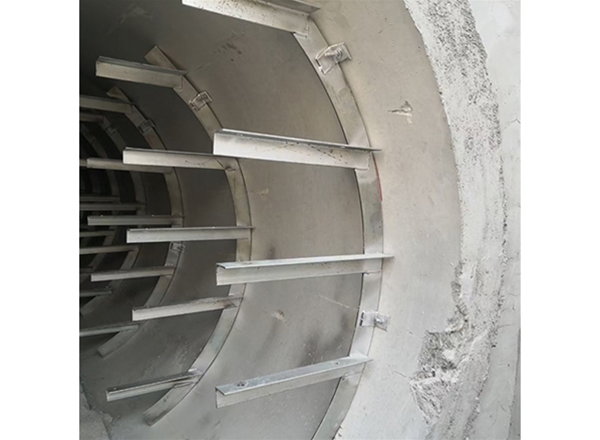

Multi-tier racks and brackets for utility tunnels and technical corridors, in hot-dip galvanised steel.
- Material
- Q235B carbon steel, GB/T 700-2006
- Surface finish
- Hot-dip galvanised standard; epoxy or stainless steel on request
- Components
- Channel, bracket, embedded channel, pipe clamp, trapeze frame
Prices are quoted per project. Send the quantity and the support schedule for a quotation.
Product data
Technical information

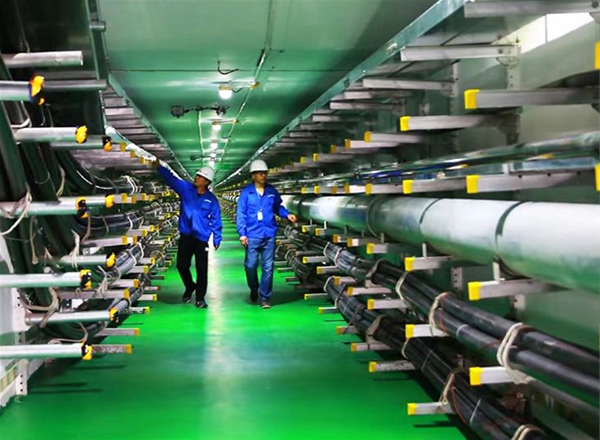

A utility tunnel carries water, heating, fire-protection, power and communication services in one walkable corridor. The supports are arranged in tiers along both walls, leaving the walkway clear for inspection and maintenance.
QINYU supplies the channel, brackets, clamps and frames for these racks, finished for the tunnel environment. The brochure illustrates the arrangement on its integrated pipe gallery page.
- Material
- Q235B carbon steel, GB/T 700-2006
- Surface finish
- Hot-dip galvanised standard; epoxy or stainless steel on request
- Components
- Channel, bracket, embedded channel, pipe clamp, trapeze frame
- Configuration
- Multi-tier wall racks to the tunnel section
Applications
Where this product is used
Enquire about Utility Tunnel Support System
Send the quantity, delivery country and project requirements and we will reply with the technical data and a quotation.
