Configured assembly
Seismic Brace Assembly for Cable Trays
Brace assembly for cable tray, trunking and busbar runs, anchored to the structure and fixed to the tray side rail.
Application
Electrical Conduits and Cable Tray Systems
Cable tray, trunking and busbar runs are carried on channel supports and braced against lateral movement, keeping the electrical route independent of the pipework.

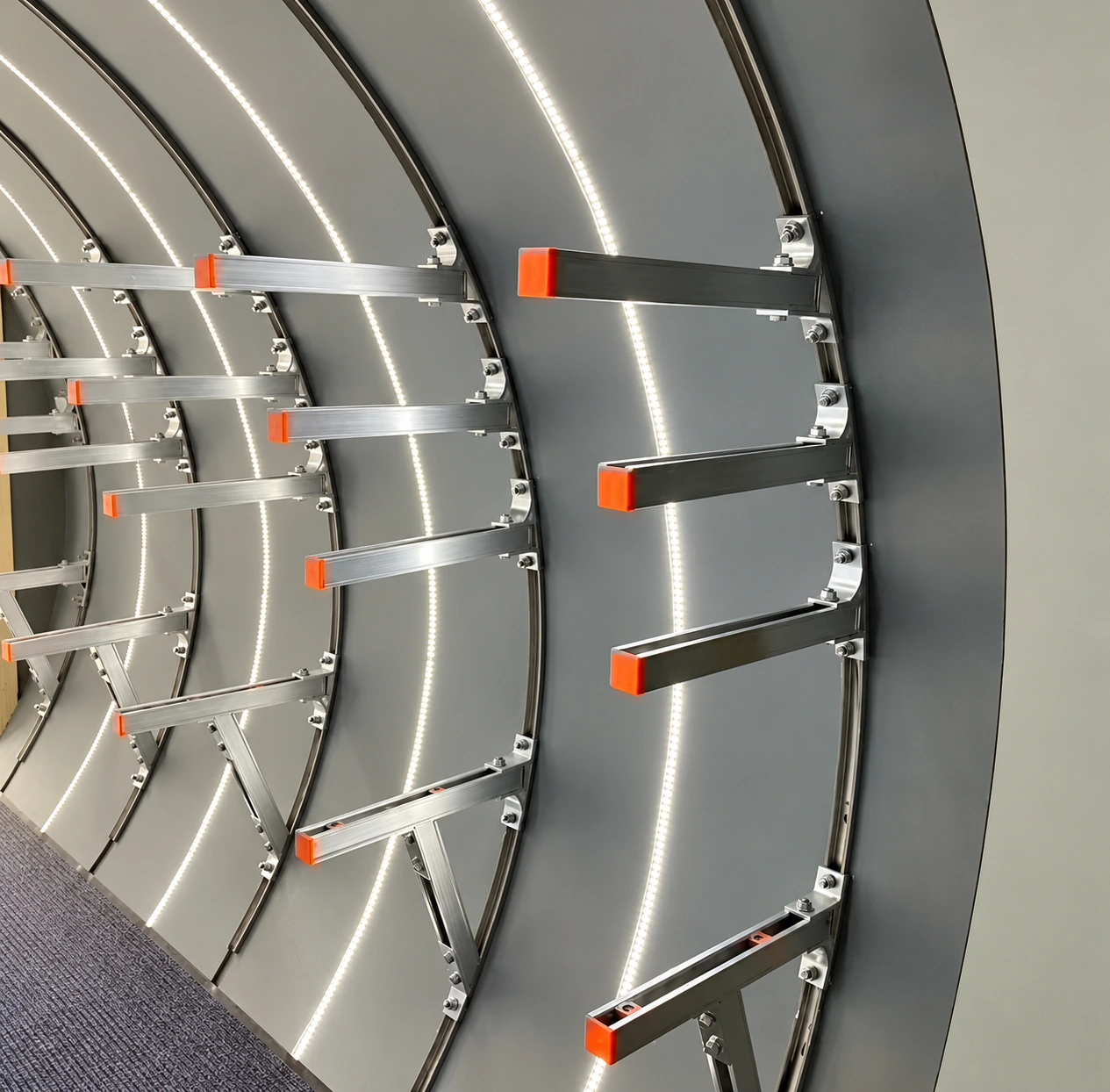

Electrical routes are usually the last service to be installed, so their supports have to fit into the space left by the pipes and ducts. Cantilever arms and trapeze frames from the channel range allow the tray to be set at the required elevation and adjusted on site.
Bracing follows the same principle as for pipes: channel struts anchored to the structure and fixed to the tray side rail.
Technical basis
- GB 50981-2014 requires seismic bracing for electrical conduit over 60 mm internal diameter.
- The same code requires bracing for cable tray, trunking and busbar runs weighing 150 N/m or more.
- GB 50303 covers the acceptance of electrical installation works.
Standards are quoted as the design reference used in our technical documentation.
Related products
Products for this application
Product range
300–600 mm projection
Cantilever Arm Bracket
Single-sided cantilever arm in 41 mm and 72 mm channel, used to carry pipework and cable tray off a wall or column.
M10 / M12
Channel Nut with Plastic Wing
Spring-loaded channel nut that can be inserted into the channel slot from the open side and held in place before the bolt…
Discuss a electrical conduits and cable tray systems project
Send the service layout and the pipe or duct sizes and we will match the braces and supports to the installation.
