Channel Nut with Plastic Wing
M10 / M12
Spring-loaded channel nut that can be inserted into the channel slot from the open side and held in place before the bolt is tightened.
- Material
- Q235B steel nut, GB/T 700-2006
- Thread
- M10 and M12
- Spring
- Plastic wing clip
Prices are quoted per project. Send the quantity and the support schedule for a quotation.
Product data
Technical information

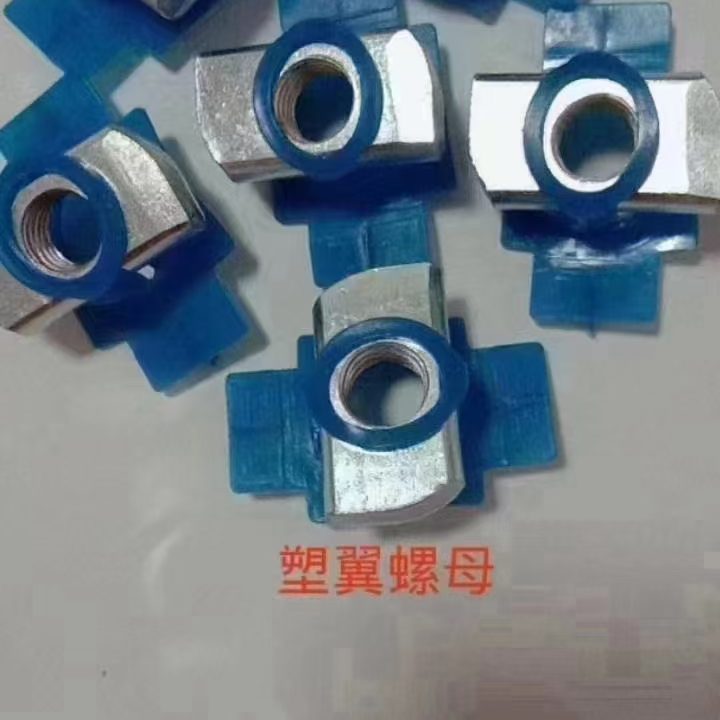

The channel nut carries the bolt that fixes a clamp or a fitting anywhere along the slot. The blue plastic wing holds the nut in position in the profile while the bolt is started, so the connection can be made without access to the back of the channel.

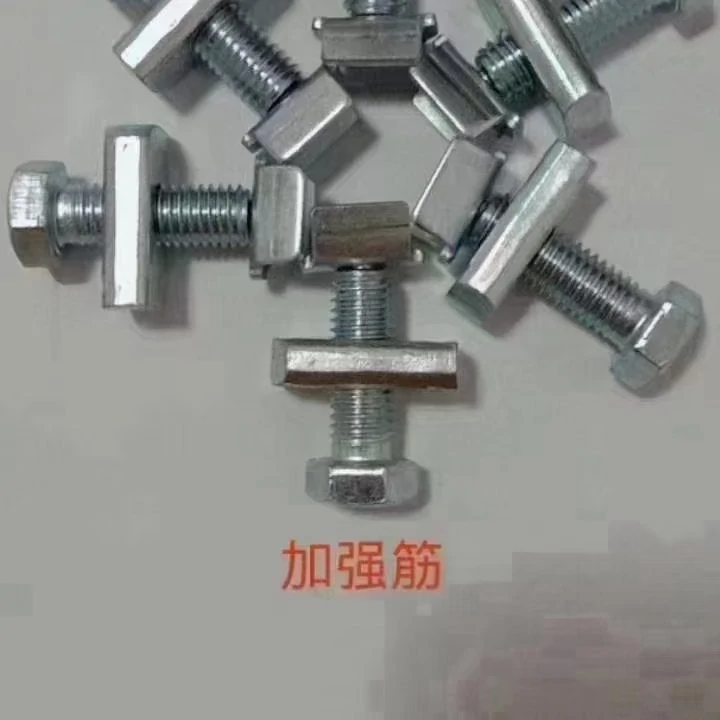

The nut is produced in M10 and M12 thread and supplied with the matching hex bolts shown in the second image.
- Material
- Q235B steel nut, GB/T 700-2006
- Thread
- M10 and M12
- Spring
- Plastic wing clip
- Surface finish
- Electro-galvanised, hot-dip galvanised
