Base Plate
YEP-2
Multi-hole base plate for connecting channel to wall, floor or another channel, with 7.00 kN recommended load.
- Material
- Q235B carbon steel, GB/T 700-2006
- Surface finish
- Electro-galvanised, hot-dip galvanised, epoxy coated, stainless steel
- Recommended load
- 7.00 kN
Prices are quoted per project. Send the quantity and the support schedule for a quotation.
Product data
Technical information
The base plate is the interface between a channel member and the building surface. The multi-hole pattern allows the channel to be fixed to a wall, a floor or to another channel at right angles.
It is also the base of many cantilever and trapeze frames in the prefabricated support range.
- Material
- Q235B carbon steel, GB/T 700-2006
- Surface finish
- Electro-galvanised, hot-dip galvanised, epoxy coated, stainless steel
- Recommended load
- 7.00 kN
- Tightening torque
- 50 Nm
- Material thickness
- 4 mm
Model data
| Part No. | Model | Recommended load (kN) | Tightening torque (Nm) | Thickness (mm) |
|---|---|---|---|---|
| 31030 | YEP-2 | 7.00 | 50 | 4 |
Scroll the table sideways to see every column.

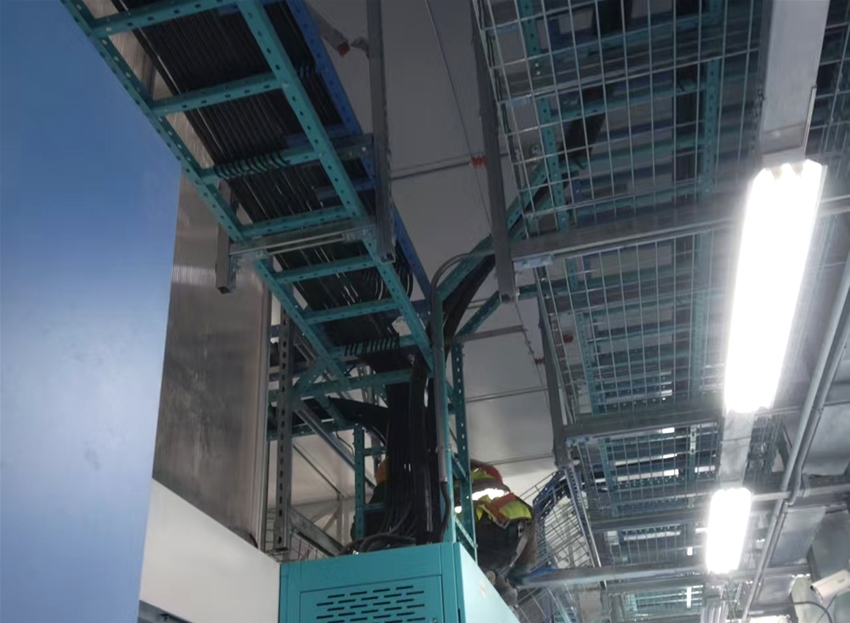

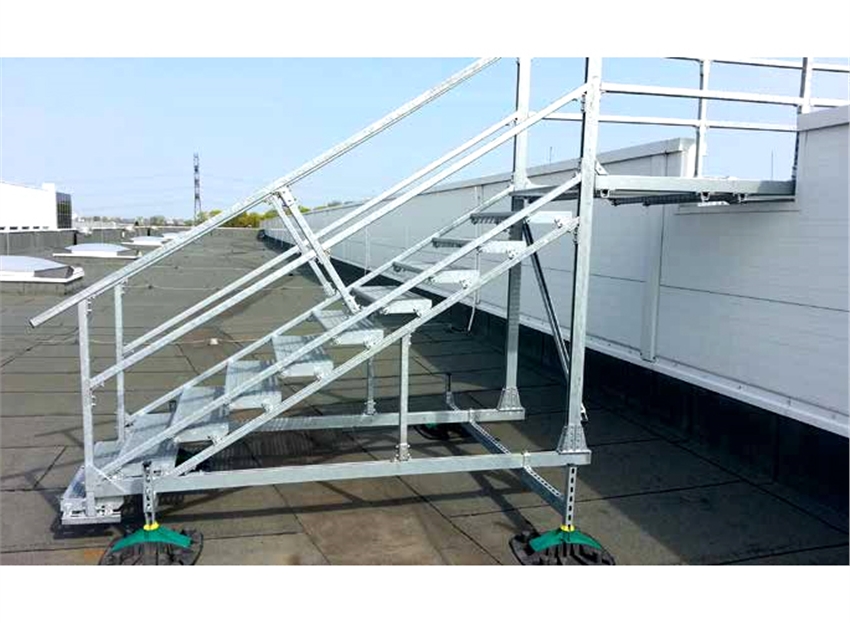

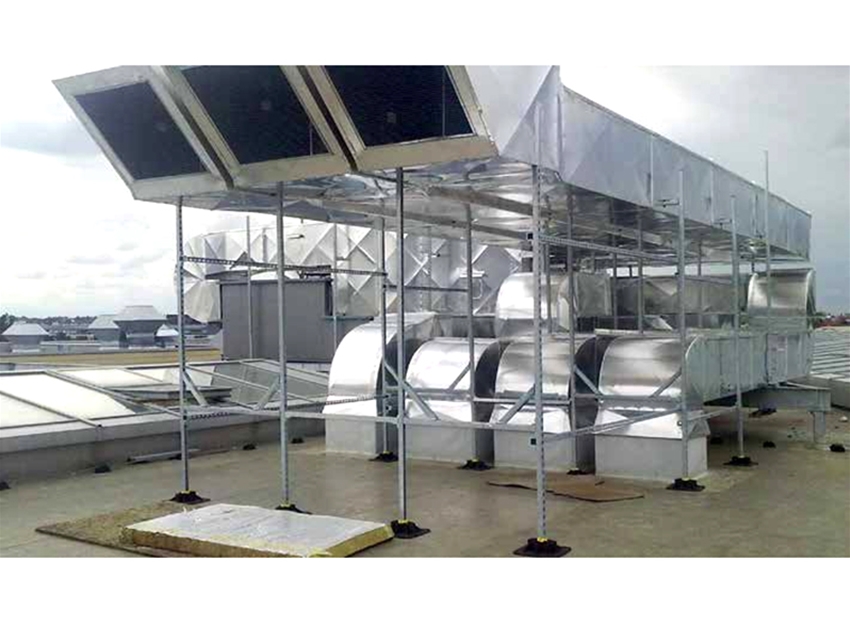

Applications
Where this product is used
Related products
Other products in this category

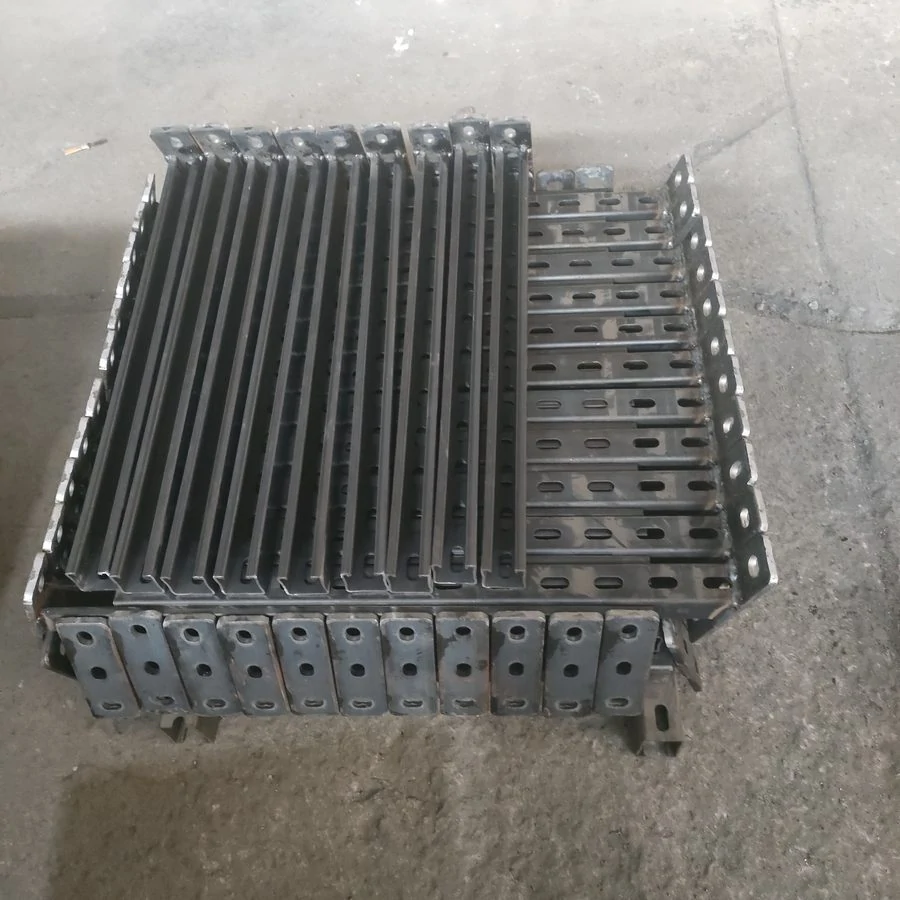

Cantilever Arm Bracket
Single-sided cantilever arm in 41 mm and 72 mm channel, used to carry pipework and cable tray off a wall or column.
Prefabricated Support Frames
Channel frames assembled in the factory to the coordinated support layout, delivered ready for bolting on site.
