Pressed and Welded Connection Fittings
Pressed / welded ranges
Pressed angle and corner parts and welded gusset brackets used to build support frames and base connections.
- Material
- Q235B carbon steel, GB/T 700-2006
- Surface finish
- Electro-galvanised, hot-dip galvanised, epoxy coated, stainless steel
- Groups
- Pressed connection parts; welded and assembled connection parts
Prices are quoted per project. Send the quantity and the support schedule for a quotation.
Product data
Technical information

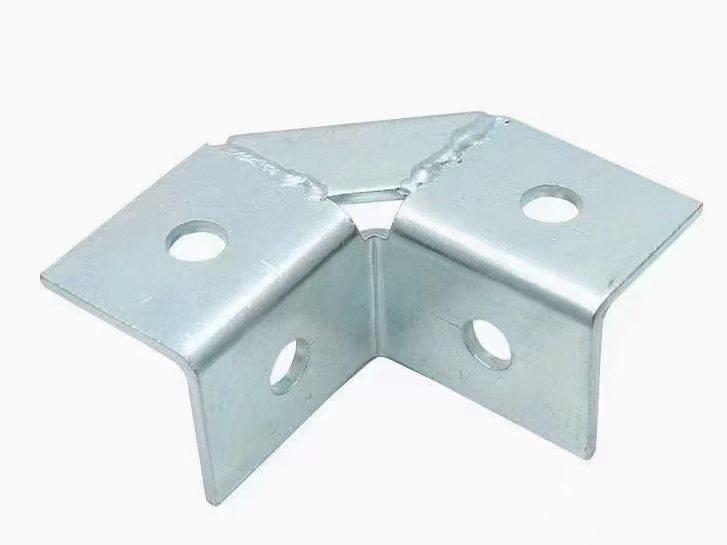

The catalogue includes a group of pressed connection parts and a group of welded and assembled parts. Pressed parts are formed from steel sheet and used for standard angle connections; welded parts are assembled from cut sections and used where a gusset or a reinforced corner is needed.
Both groups are produced in Q235B steel and finished to the same coating options as the channel range.
- Material
- Q235B carbon steel, GB/T 700-2006
- Surface finish
- Electro-galvanised, hot-dip galvanised, epoxy coated, stainless steel
- Groups
- Pressed connection parts; welded and assembled connection parts
