Seismic Brace Assembly for Ducts
Configured assembly

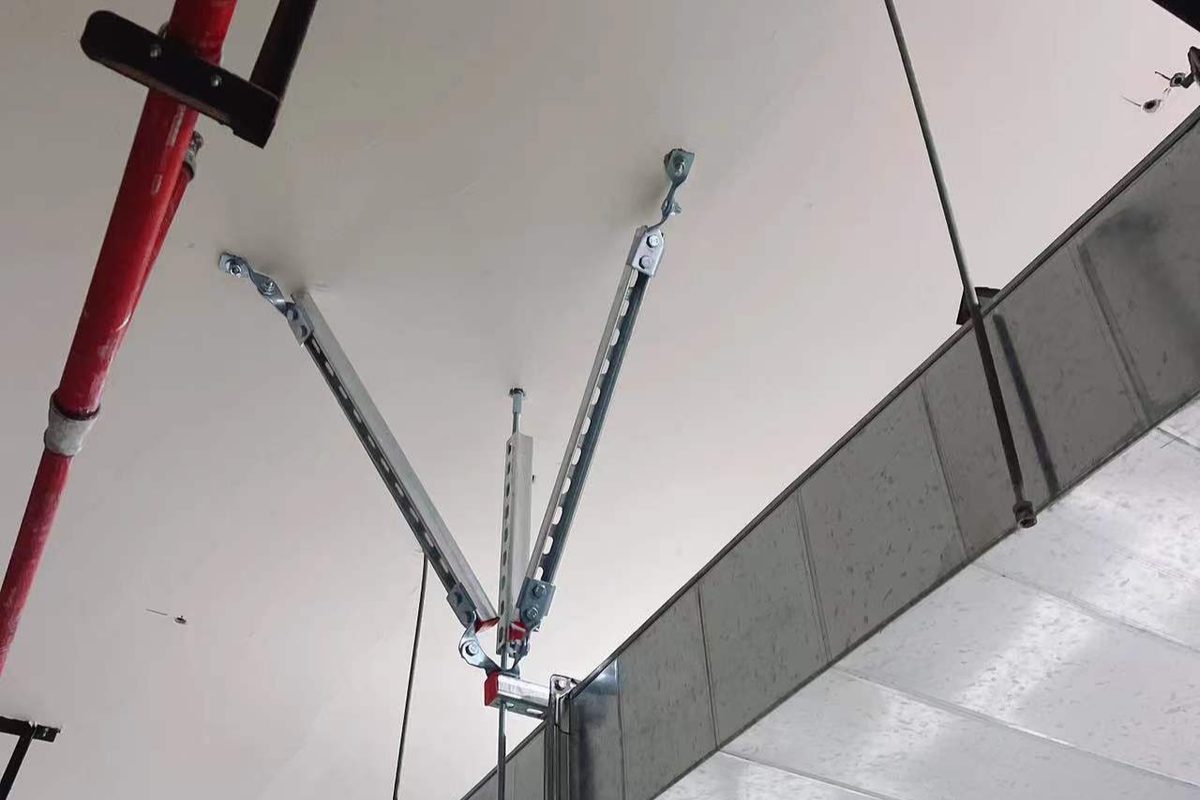

Brace assembly for rectangular and circular ductwork, with channel struts clamped to the duct and anchored to the slab above.
- Material
- Q235B carbon steel, GB/T 700-2006
- Surface finish
- Pre-galvanised, hot-dip galvanised, epoxy coated or stainless steel (SS304 / SS316)
- Components
- Slotted strut channel, duct clamp, hinge / swivel connector, anchor, bolts
Prices are quoted per project. Send the quantity and the support schedule for a quotation.
Product data
Technical information
Duct runs are braced in the same way as pipes, but the clamp bears on a rectangular or circular duct section rather than a round pipe. The assembly uses slotted channel struts in a V or single-diagonal arrangement, with clamping plates that spread the load across the duct face.
GB 50981-2014 requires bracing for rectangular ducts with a cross-sectional area of 0.38 m² or more and circular ducts of 0.7 m diameter or more.
- Material
- Q235B carbon steel, GB/T 700-2006
- Surface finish
- Pre-galvanised, hot-dip galvanised, epoxy coated or stainless steel (SS304 / SS316)
- Components
- Slotted strut channel, duct clamp, hinge / swivel connector, anchor, bolts
- Applicable specifications
- GB 50981-2014; CJ/T 476-2015; CECS 420:2015
