Seismic Hinge Connectors (Types A and B)
Type A / Type B
Hinged end connectors that let brace struts meet the structure and the pipe at the required angle without site drilling or welding.
- Material
- Q235B carbon steel, GB/T 700-2006
- Surface finish
- Electro-galvanised, hot-dip galvanised, epoxy coated, stainless steel
- Types
- Type A and type B hinge links
Prices are quoted per project. Send the quantity and the support schedule for a quotation.
Product data
Technical information
The hinge connector is the joint that allows a brace strut to sit at 45° while transferring tension and compression into the anchor. QINYU produces the hinged links in two configurations, referred to in our catalogue as type A and type B.

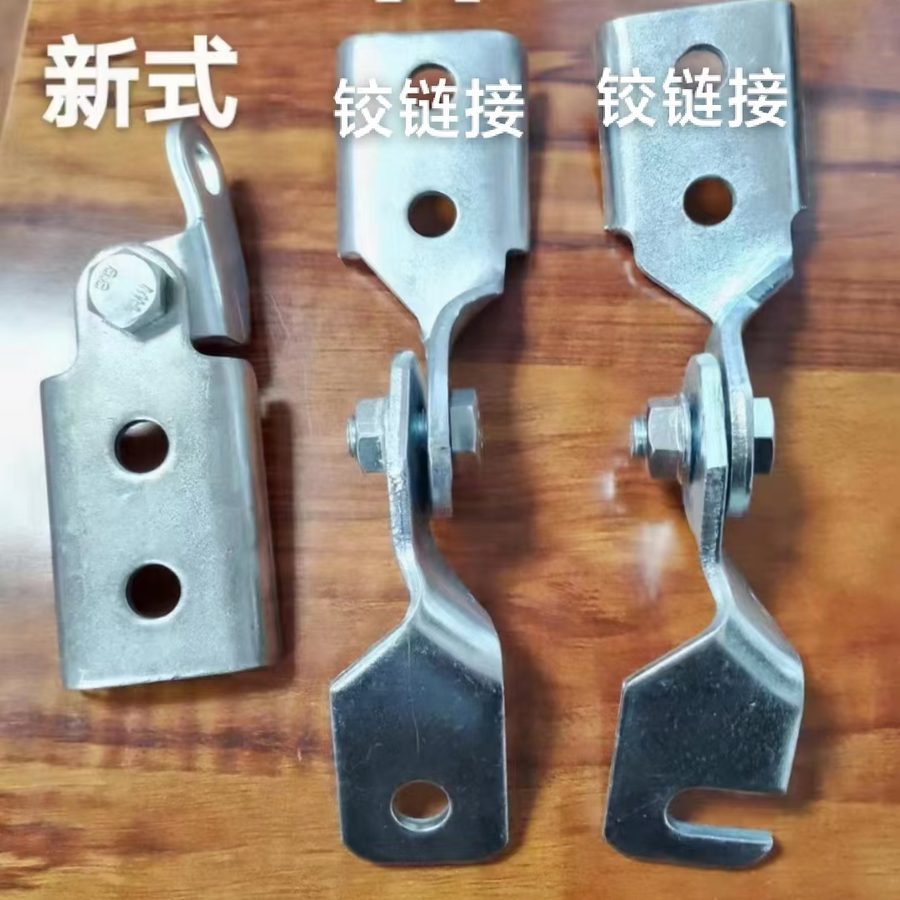

Both types are pressed from Q235B steel, galvanised, and bolted to the channel slot with a standard hex bolt. The photo on this page shows the two hinge types side by side.
- Material
- Q235B carbon steel, GB/T 700-2006
- Surface finish
- Electro-galvanised, hot-dip galvanised, epoxy coated, stainless steel
- Types
- Type A and type B hinge links
- Fixing
- Bolted into the channel slot; no site welding
Applications
Where this product is used
