Seismic Pipe Clamp
YED-065 to YED-200
Two-bolt clamp for lateral and longitudinal brace connections, covering pipe outside diameters from 72 mm to 228 mm with a stated design load.
- Material
- Q235B carbon steel, GB/T 700-2006
- Surface finish
- Electro-galvanised, hot-dip galvanised, epoxy coated, stainless steel
- Application
- Lateral and longitudinal brace connection, DN65 to DN200 pipework
Prices are quoted per project. Send the quantity and the support schedule for a quotation.
Product data
Technical information

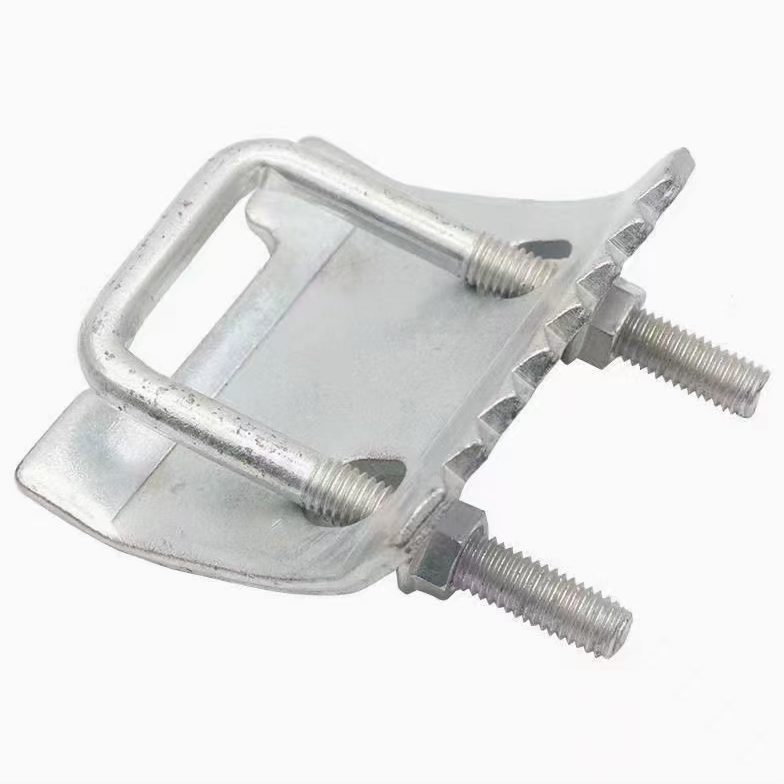

The seismic clamp grips the pipe with a formed saddle and two bolts, and provides the bolt holes for the brace strut or the threaded rod. It is used where a brace has to be connected to an existing pipe run.
Each size is listed with its clamp range and design load, so the clamp can be matched to the brace design without a separate calculation.
- Material
- Q235B carbon steel, GB/T 700-2006
- Surface finish
- Electro-galvanised, hot-dip galvanised, epoxy coated, stainless steel
- Application
- Lateral and longitudinal brace connection, DN65 to DN200 pipework
Model data
| Part No. | Model | Clamp range (mm) | Design load (kN) |
|---|---|---|---|
| 51901 | YED-065 | 72–77 | 6.6 |
| 51902 | YED-080 | 87–93 | 6.6 |
| 51903 | YED-100 | 114–118 | 8.1 |
| 51904 | YED-125 | 138–144 | 8.1 |
| 51905 | YED-150 | 164–170 | 14.9 |
| 51906 | YED-200 | 219–228 | 14.9 |
