Seismic Brace Assembly for Pipes
Configured assembly
Lateral and longitudinal sway brace for suspended pipework, made from slotted channel, a pipe clamp and hinged connectors anchored to the structure.
- Material
- Q235B carbon steel, GB/T 700-2006
- Surface finish
- Pre-galvanised, hot-dip galvanised, epoxy coated or stainless steel (SS304 / SS316)
- Components
- Slotted strut channel, pipe clamp, hinge / swivel connector, anchor, bolts
Prices are quoted per project. Send the quantity and the support schedule for a quotation.
Product data
Technical information

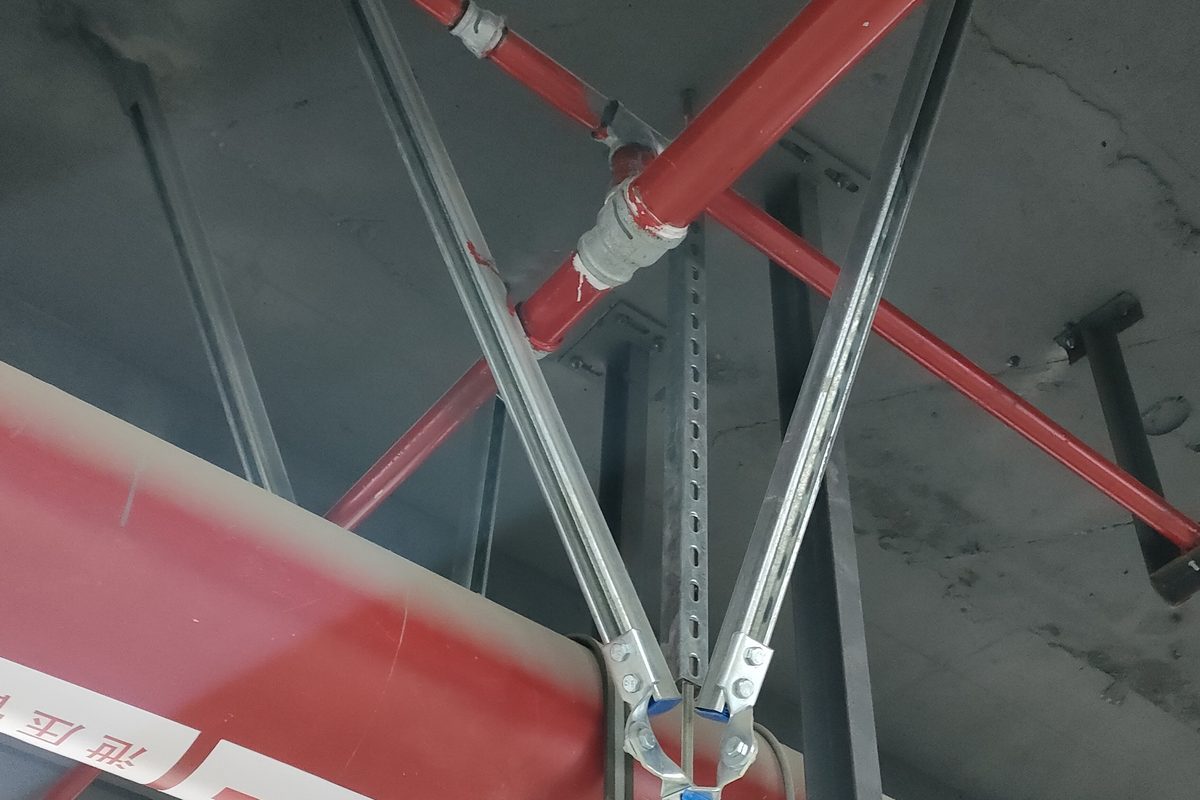

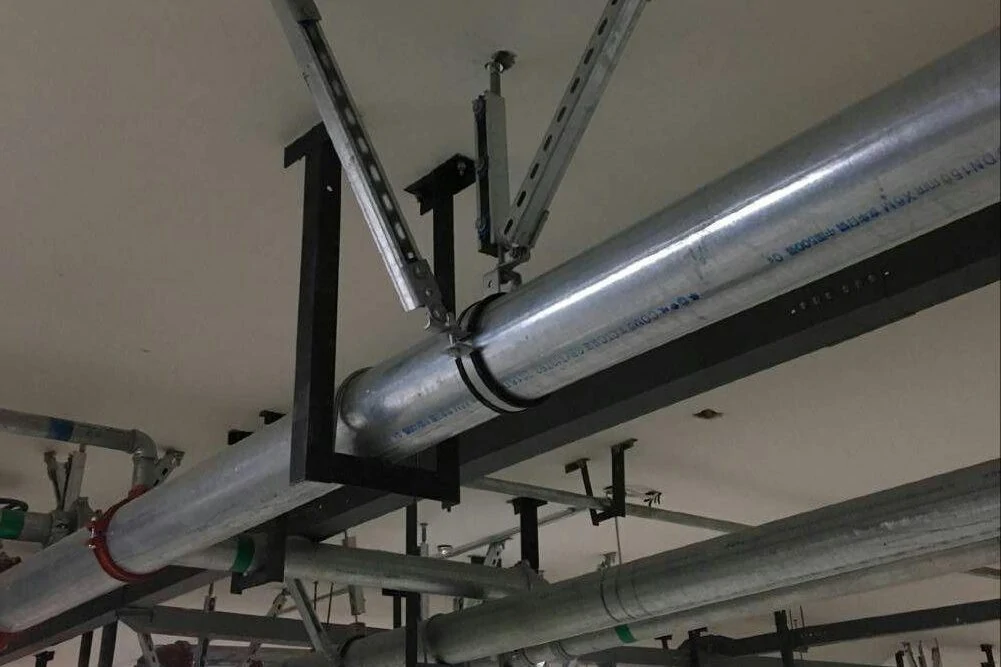

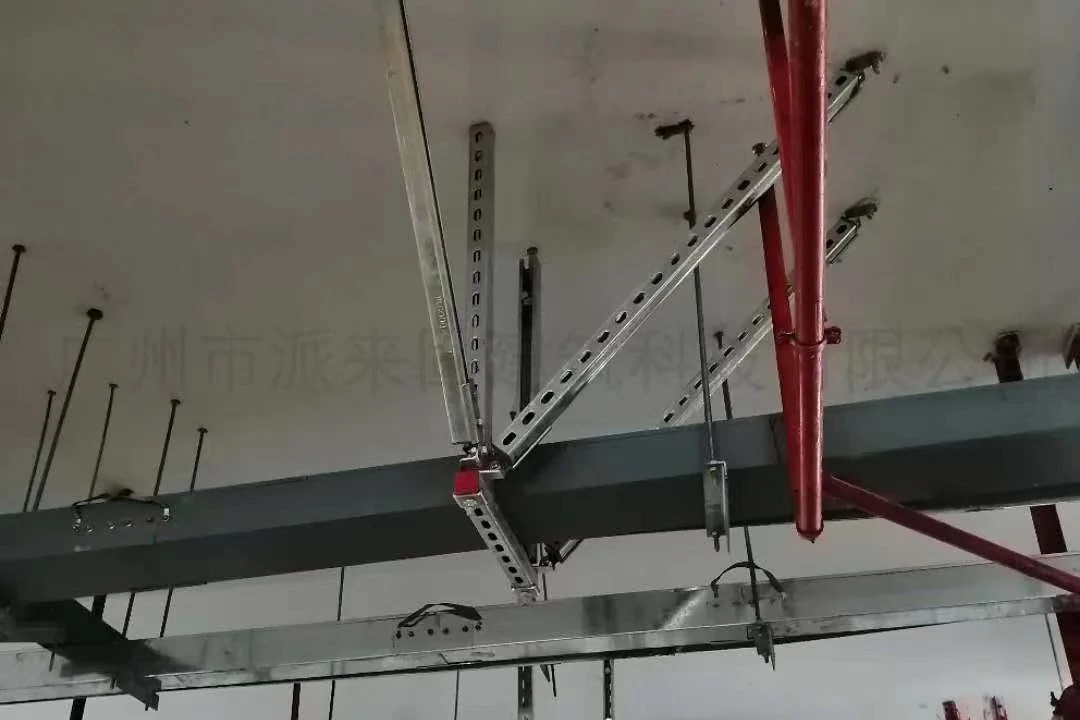

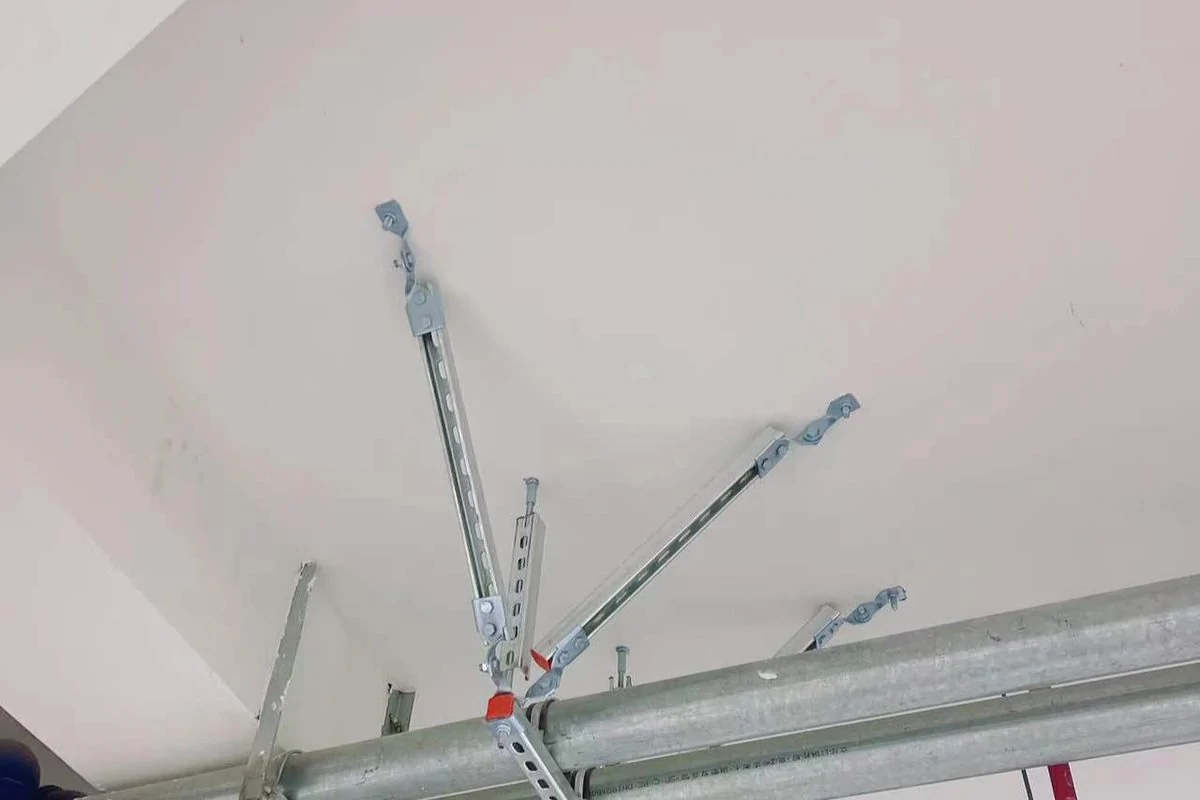

A pipe brace assembly transfers the horizontal seismic load from the pipe to the building structure. The assembly on this page is built from two slotted channel struts set at roughly 45°, a pipe clamp at the pipe and hinge or swivel connectors at the anchor end.
The components are produced as finished parts. GB 50981-2014 requires that all components of a seismic support be factory-made components rather than site-fabricated sections, which is how these assemblies are supplied.
- Material
- Q235B carbon steel, GB/T 700-2006
- Surface finish
- Pre-galvanised, hot-dip galvanised, epoxy coated or stainless steel (SS304 / SS316)
- Components
- Slotted strut channel, pipe clamp, hinge / swivel connector, anchor, bolts
- Brace angle
- Typical 45° arrangement as detailed on the project support drawing
- Applicable specifications
- GB 50981-2014; CJ/T 476-2015; CECS 420:2015
