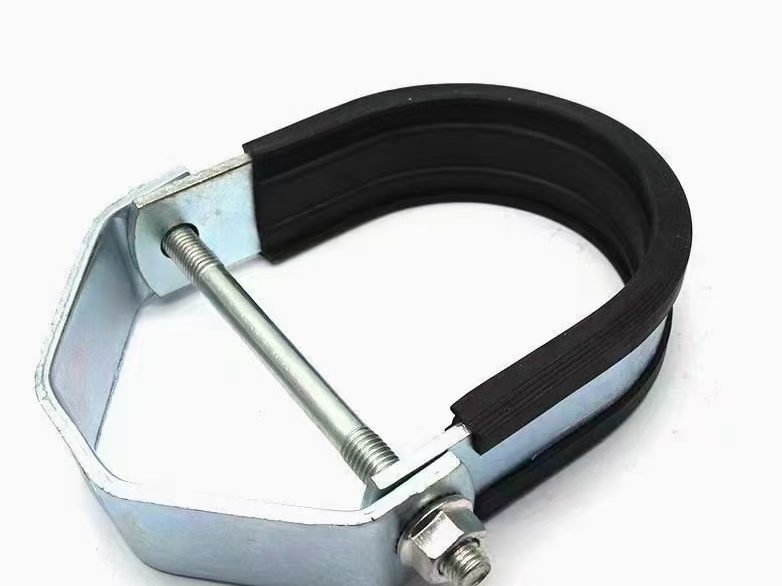

Lined Pipe Clamp
Rubber-lined clamp
Pipe clamp with a rubber liner between the steel shell and the pipe, for insulated pipework and noise-sensitive installations.
- Material
- Q235B carbon steel shell, GB/T 700-2006
- Lining
- Rubber liner; EPDM liner listed for part of the clamp range
- Surface finish
- Electro-galvanised, hot-dip galvanised, epoxy coated, stainless steel
Prices are quoted per project. Send the quantity and the support schedule for a quotation.
Product data
Technical information
A rubber liner separates the steel clamp from the pipe surface. On the clamp ranges where a liner is listed in our catalogue, it reduces the transmission of vibration and noise from the pipe into the support.
The lined version is used where the pipe carries chilled water, where acoustic performance matters, or where the pipe coating must not be damaged by the clamp.
- Material
- Q235B carbon steel shell, GB/T 700-2006
- Lining
- Rubber liner; EPDM liner listed for part of the clamp range
- Surface finish
- Electro-galvanised, hot-dip galvanised, epoxy coated, stainless steel
Applications
Where this product is used
