Single-Sided Strut Channel
YE-21 to YE-72
Cold-formed C-section channel with a toothed edge, an axial stiffening rib and auxiliary measuring marks, used as the structural member of fabricated supports and seismic braces.
- Material
- Q235B carbon steel, GB/T 700-2006
- Surface finish
- Pre-galvanised sheet, hot-dip galvanised, epoxy coated, stainless steel SS304 / SS316, zinc-aluminium-magnesium alloy
- Section height
- 21, 41, 52, 62 and 72 mm
Prices are quoted per project. Send the quantity and the support schedule for a quotation.
Product data
Technical information
The single-sided channel is rolled from Q235B steel strip. The toothed return on the open side bites into the fitting to resist shear and slip, and the axial stiffening rib raises bending capacity without increasing the section height.
It is the base profile for the frames, cantilever arms and brace assemblies on this site. Channel is supplied cut to 6 m standard lengths; fittings locate anywhere along the slot.
- Material
- Q235B carbon steel, GB/T 700-2006
- Surface finish
- Pre-galvanised sheet, hot-dip galvanised, epoxy coated, stainless steel SS304 / SS316, zinc-aluminium-magnesium alloy
- Section height
- 21, 41, 52, 62 and 72 mm

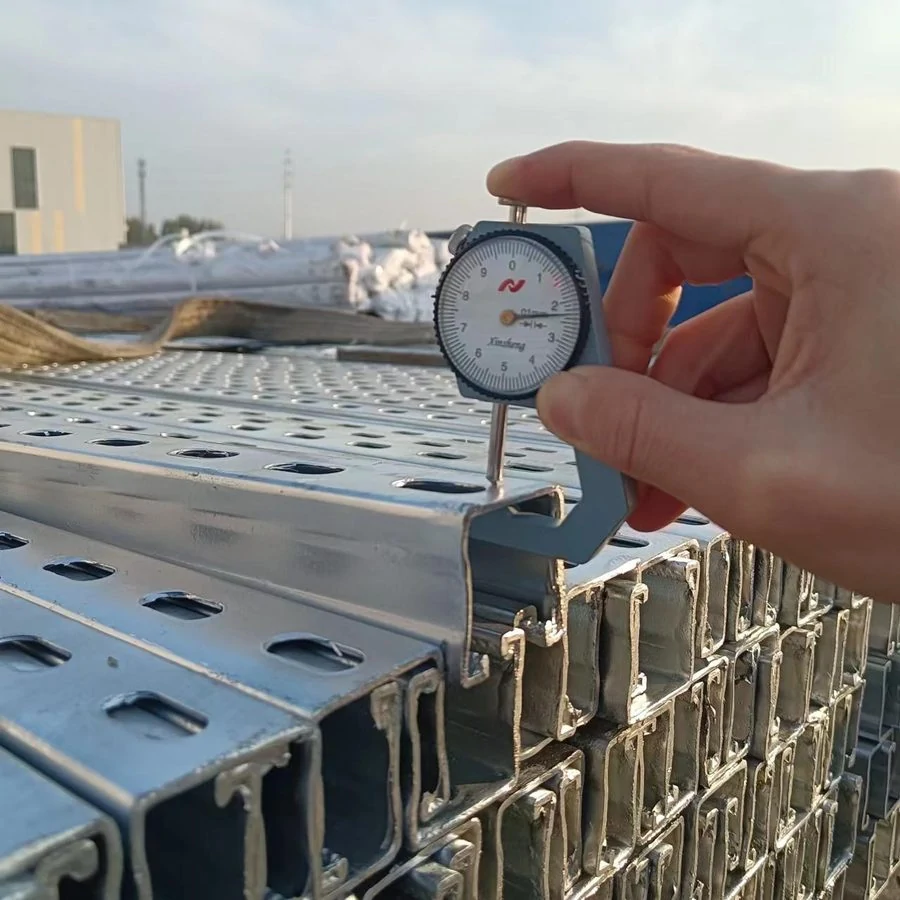

- Wall thickness
- 2.0, 2.5 and 2.75 mm
- Standard length
- 6 m
Model data
| Part No. | Model | Thickness (mm) | Section height (mm) | Standard length (m) |
|---|---|---|---|---|
| 10001 | YE-21 | 2.0 | 21 | 6 |
| 10002 | YE-21/T | 2.5 | 21 | 6 |
| 10003 | YE-41 | 2.0 | 41 | 6 |
| 10004 | YE-41/T | 2.5 | 41 | 6 |
| 10005 | YE-52 | 2.5 | 52 | 6 |
| 10006 | YE-62 | 2.5 | 62 | 6 |
| 10007 | YE-72 | 2.75 | 72 | 6 |
Scroll the table sideways to see every column.
